Model CCT - 3 Ton Tower
**Limited supplies on 3 Phase Metric Fan Motors as we upgrade to Nema Fan Motors!**

Model CCT - 3 Ton Tower

Product Description
Model CCT-3
3 Nominal Tons based on design of 95/85/75 @ 9 GPM
  • Equipped with a dual on/off switch - one for the motor and one for the sump pump
  • Wired and tested to low voltage, single phase electricity
  • Common uses include small process cooling, machinery cooling, and pond cooling applications.
Fan Motor:
1/6 HP, 110/220V, 1PH, 60Hz
*Electrical hookups are inside the junction box located on fan motor
CCT-237 Sump Pump: 1/3HP, 115V/1PH/60Hz (17' TDH @ 9 GPM)
Cooling Capacity: 45,000 BTU/hr
Air Volume: 870 CFM
Water Inlet: 1.5"
Water Outlet: 1.5"
Tower Diameter: 27 1/8"
Tower Height: 50"
Operating Weight: 161 lbs.
Dry Weight: 62 lbs

Shipping Weight: 130 lbs.
Shipping Dimensions: 36 x 36 x 61

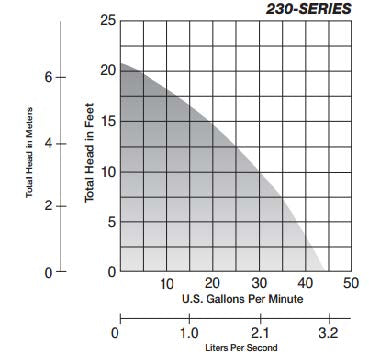

DISCLAIMER: Before considering the purchase of our model CCT cooling tower, please be aware the sump pump does have limitations. Please verify that the cooling tower will work for your application using the pump head and flow rates on the performance charts provided in the images and specification sheets. If you have any questions regarding the performance of this cooling tower, please call us at 800-752-1905.
