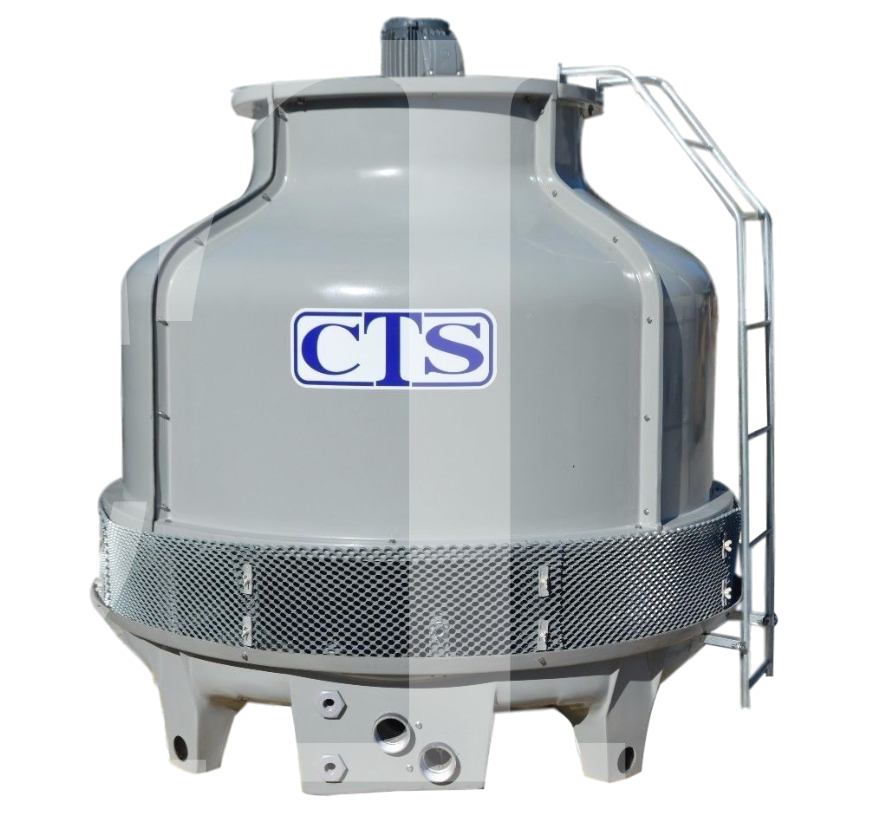

60 Ton Cooling Tower – Model T-260
The Model T-260 60 Ton Cooling Tower from Cooling Tower Systems is a high-performance fiberglass evaporative cooling tower engineered to provide dependable, energy-efficient cooling for demanding commercial and industrial applications. Rated at 60 nominal tons based on a 95°F / 85°F / 75°F design at 177 GPM, the Model T-260 delivers exceptional heat rejection while helping improve equipment performance, reduce operating costs, and extend the service life of valuable process equipment.
Manufactured from premium Fiberglass Reinforced Plastic (FRP), the Model T-260 offers outstanding resistance to corrosion, UV exposure, moisture, and harsh outdoor environments. Unlike conventional steel cooling towers, its fiberglass construction minimizes maintenance requirements while providing excellent structural durability and long-term reliability. This makes it an ideal solution for facilities seeking dependable, low-maintenance cooling equipment.
Powered by a 1.5 HP, 3-phase fan motor producing approximately 14,700 CFM of airflow, the Model T-260 is designed to deliver consistent cooling performance for continuous industrial operation. Its rugged construction and efficient airflow help provide reliable heat rejection across a wide range of commercial and industrial process cooling applications.
The Model T-260 Cooling Tower is ideal for manufacturing plants, HVAC systems, plastics processing, food and beverage facilities, chemical processing, metal fabrication, power generation, machine shops, and many other industrial environments. Every unit is shipped completely assembled and packaged, helping reduce installation time and labor costs. Complete engineering documentation, CAD drawings, operating manuals, assembly instructions, and technical specifications are available to simplify installation and ongoing maintenance.
Whether replacing an existing cooling tower or installing a new cooling system, the Model T-260 Cooling Tower delivers dependable performance, excellent energy efficiency, and long service life. Backed by the quality and engineering expertise of Cooling Tower Systems, the Model T-260 provides a trusted cooling solution for demanding industrial cooling applications.
Key Features & Benefits
- 60 Ton Cooling Capacity
- 900,000 BTU/hr Heat Rejection
- 14,700 CFM Airflow
- Heavy-Duty FRP Construction
- Corrosion Resistant
- Ships Fully Assembled
- Low Maintenance
- Commercial & Industrial Applications
- Long Service Life
- Energy Efficient Design
Technical Specifications
60 Nominal Tons based on design of 95/85/75 @ 177 GPM
| Specification | Value |
|---|---|
| Fan Motor | 1.5 HP, 8P, 208-230/460V, 3PH, 60Hz *Electrical hookups are inside the junction box located on fan motor |
| Cooling Capacity | 900,000 BTU/hr |
| Air Volume | 14,700 CFM |
| Water Inlet | 3″ |
| Water Outlet | 3″ |
| Tower Diameter | 78.75″ |
| Tower Height | 74 11/16″ |
| Operating Weight | 1,752 lbs. |
| Dry Weight | 437 lbs. |
| Nozzle Type | Round Female (NPT) Threaded Cast Iron |
Shipping Information
| Shipping Details | Value |
|---|---|
| Shipping Weight | 570 lbs. |
| Shipping Dimensions | 81″ × 81″ × 94″ |
| Packaging | Ships Completely Assembled & Packaged |
The Model T-260 Cooling Tower is carefully packaged and shipped fully assembled to help reduce installation time and minimize labor costs. Every unit is securely prepared for transportation to help ensure it arrives in excellent condition and is ready for installation upon delivery.
Typical Applications
- Manufacturing Plants
- HVAC Systems
- Food Processing
- Plastic Processing
- Chemical Plants
- Power Generation
- Metal Fabrication
- Large Industrial Process Cooling
Frequently Asked Questions
What cooling capacity does the Model T-260 Cooling Tower provide?
The Model T-260 delivers a nominal cooling capacity of 60 tons with approximately 900,000 BTU/hr of heat rejection. It is rated using a 95°F / 85°F / 75°F cooling design at 177 GPM, making it ideal for high-capacity industrial cooling applications.
What type of fan motor is installed on the Model T-260?
The Model T-260 is equipped with a 1.5 HP, 8-pole, 208-230/460V, 3-phase, 60Hz fan motor engineered to provide dependable airflow of approximately 14,700 CFM for efficient cooling performance.
What piping connections are used on the Model T-260 Cooling Tower?
The Model T-260 features 3-inch water inlet and 3-inch water outlet connections, making it suitable for higher water flow requirements commonly found in commercial and industrial process cooling systems.
Is the Model T-260 suitable for continuous industrial operation?
Yes. The Model T-260 is built with heavy-duty Fiberglass Reinforced Plastic (FRP) construction and is designed for continuous operation in demanding industrial environments. Its corrosion-resistant design and durable components help provide long service life with minimal maintenance requirements.
