Model T-3500 Cooling Tower Replacement Parts
Keep your CTS Model T-3500 running with factory replacement parts made for it. The T-3500 is the largest tower in the Model T-2 line: 1,500 nominal tons and 22,500,000 BTU/hr at 4,516 GPM, driven by a 50 HP fan motor. When a major component fails on a tower that size, a whole process can stop, so we keep the critical parts ready to ship.
Parts Available Online

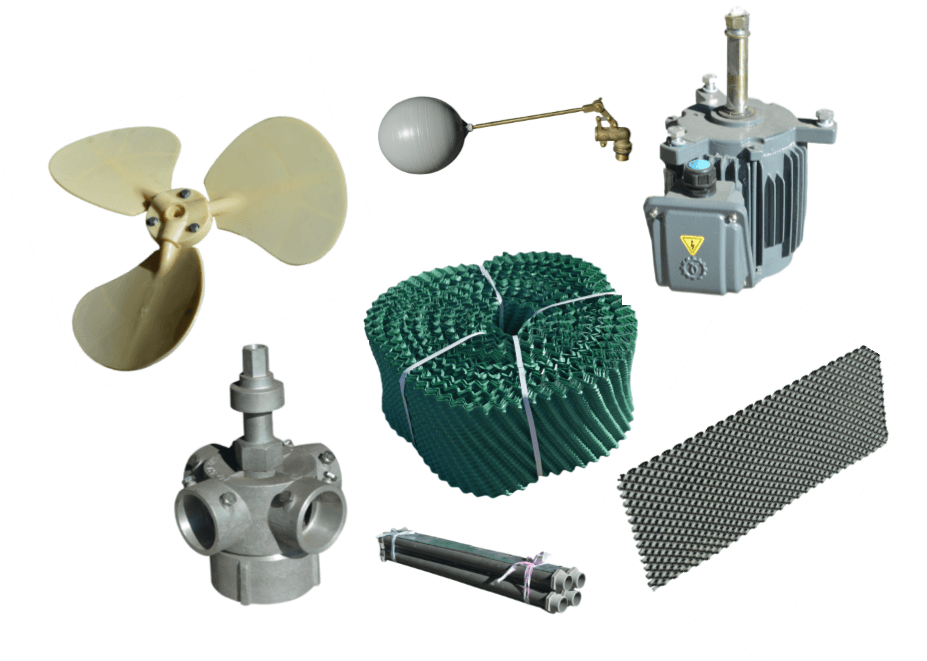

Select the part you need from the menu above. These are the major components that will put a T-3500 out of service:
| Part # | Description |
|---|---|

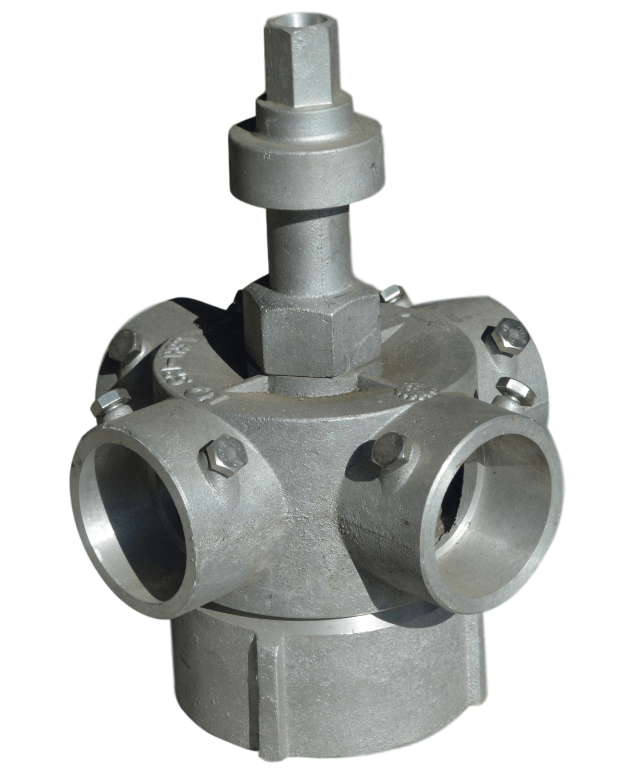

| 12-01-1500 | Sprinkler Head |

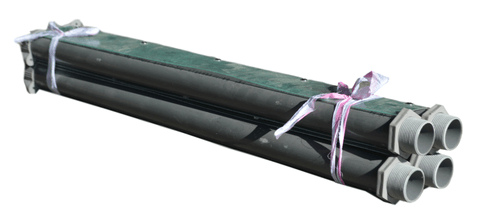

| 13-01-03-1500 | Sprinkler Pipe Assembly * |

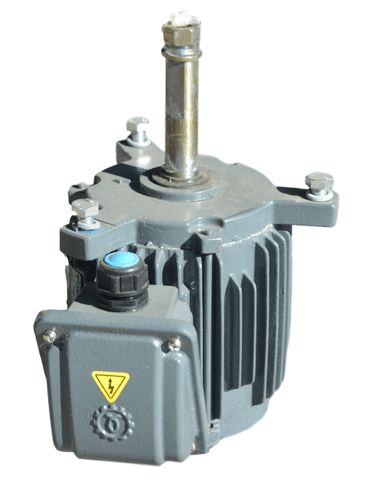

| 16-01-1500-N | 50 HP Fan Motor, 208/230/460V/3/60Hz, NEMA |
| 16-01-1500-M | 50 HP Fan Motor, 220/440V/3/60Hz, Metric |

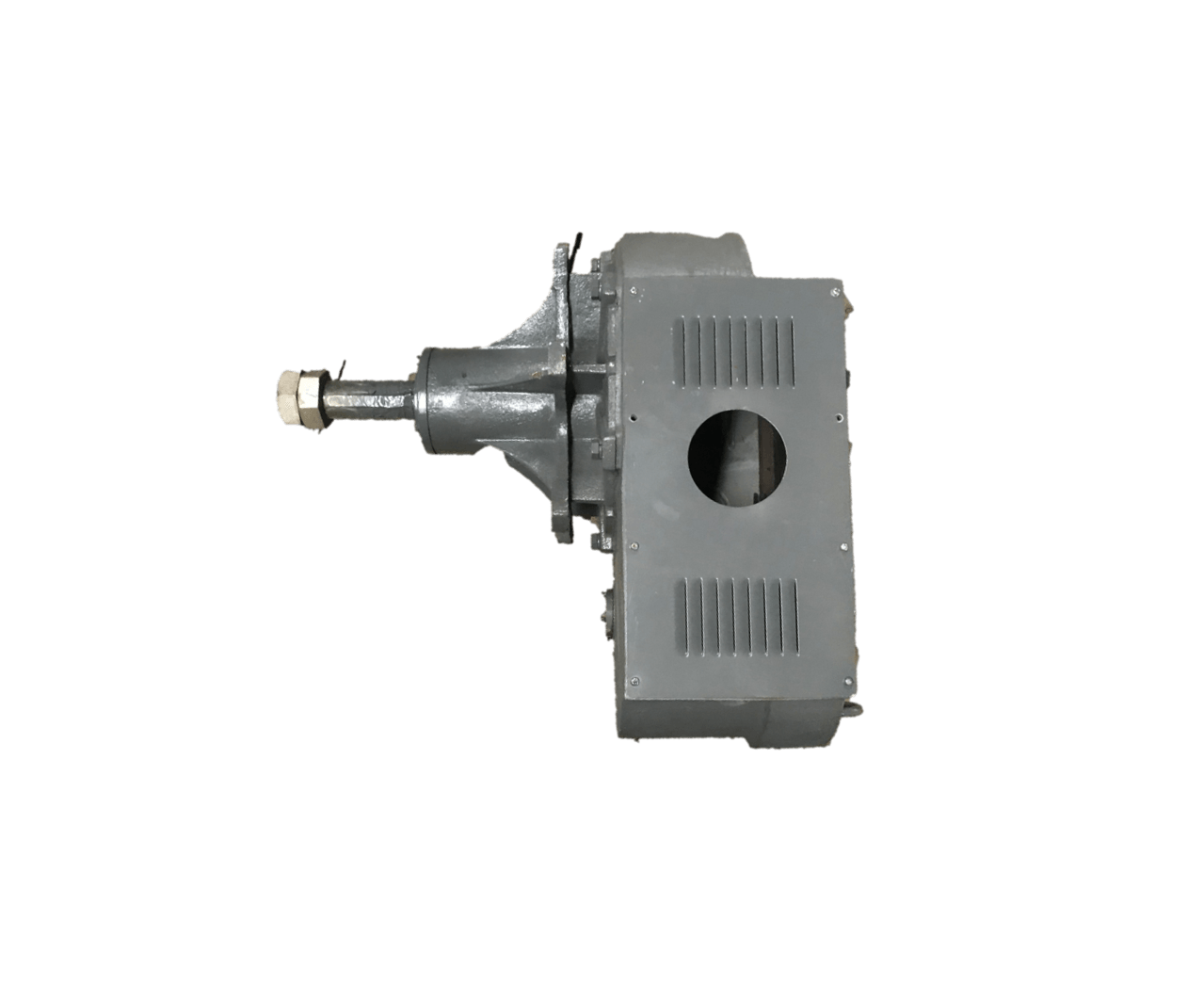

| 16-02-1500 | V-Belt Speed Reducer |

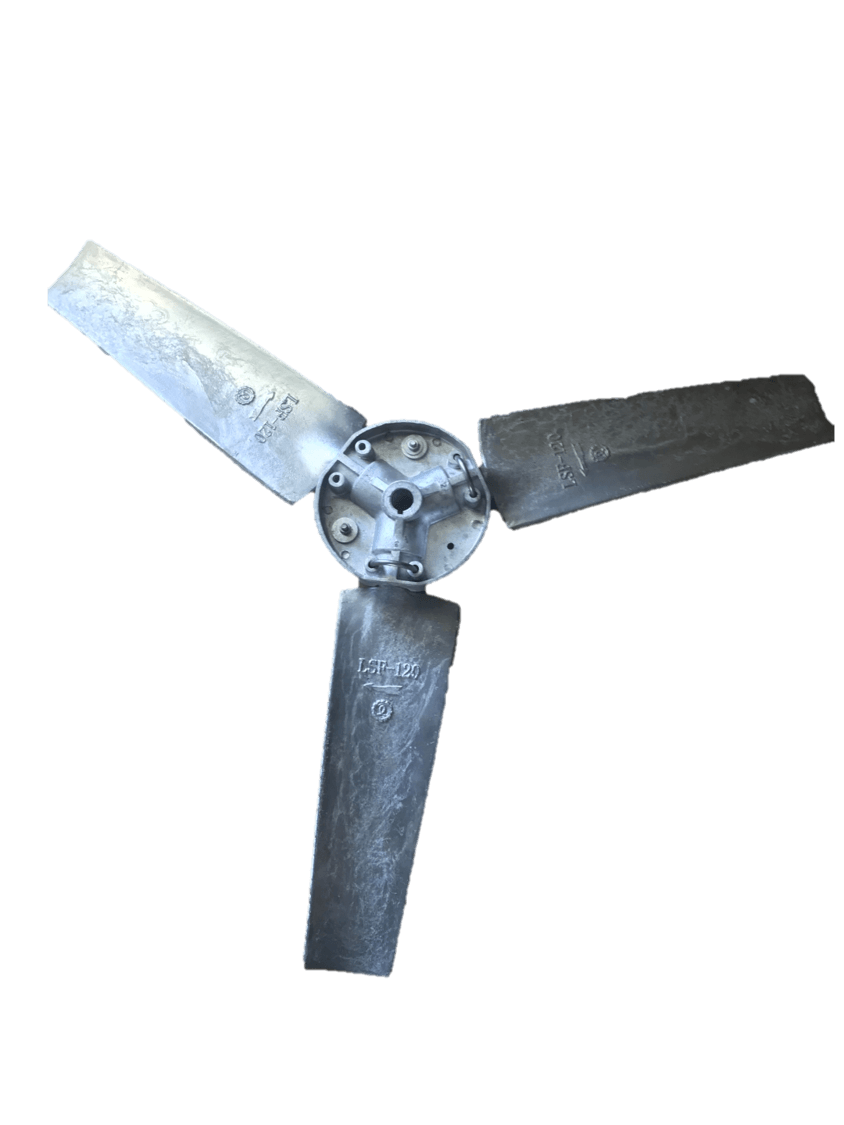

| 17-01-04-1500 | Fan Blade Assembly * |
* Parts marked with an asterisk ship as a complete set. All other T-3500 parts can be purchased by phone with an account executive at 1-800-752-1905.
How to Tell When a Part Needs Replacing
- Fan motor: overheating, tripping breakers, bearing noise, or vibration. See cooling tower motor replacement.
- Speed reducer and fan blades: unusual noise, vibration, slipping belts, or cracked or out-of-pitch blades. Check blade pitch against the fan assembly specs below.
- Sprinkler head and pipe: uneven water distribution, dry spots on the fill, or rising cold-water temperature.
For a full walkthrough, read when to replace cooling tower parts and our troubleshooting guide. If your fill is fouled or sagging, see cooling tower fill replacement.
Engineering Information
- Complete specifications for the Model T-3500 (PDF)
- Assembly instructions, T-2200 to T-3500 (PDF)
- Assembly video
- Fan assembly pitch specification (PDF)
- Operating instructions and service manual (PDF)
Frequently Asked Questions
Which replacement parts can I buy online for the T-3500?
The six major components that can take a T-3500 out of service: the sprinkler head, sprinkler pipe assembly, 50 HP fan motor (NEMA or metric), V-belt speed reducer, and fan blade assembly. All other parts can be ordered by phone at 1-800-752-1905.
What does the asterisk next to a part mean?
Parts marked with an asterisk (*) ship as a complete set. The sprinkler pipe assembly and the fan blade assembly are sold this way.
Should I choose the NEMA or the metric fan motor?
Match the motor to your power supply and mounting. The NEMA motor is 50 HP, 208/230/460V, 3-phase, 60 Hz. The metric motor is 50 HP, 220/440V, 3-phase, 60 Hz. If you are not sure which is installed, check the motor nameplate or call us.
Will these parts fit my T-3500?
These parts are made for the CTS Model T-3500 round FRP counterflow tower. Have your model number ready when you order, and call us if your tower has been modified.
More for Your T-3500
View the Model T-3500 cooling tower, browse replacement parts by model, or request a quote for parts or a new tower.
