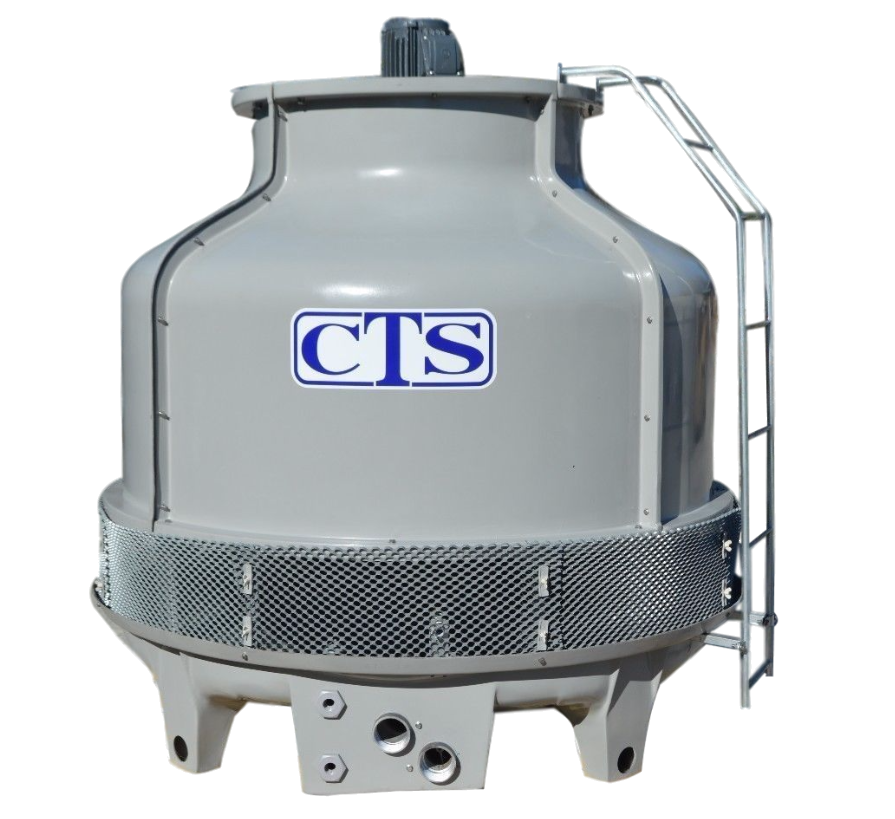

40 Ton Cooling Tower – Model T-240
The Model T-240 40 Ton Cooling Tower from Cooling Tower Systems is a high-performance fiberglass evaporative cooling tower designed to provide reliable and energy-efficient cooling for a wide range of commercial and industrial applications. Rated at 40 nominal tons based on a 95°F / 85°F / 75°F design at 118 GPM, this cooling tower delivers dependable heat rejection while helping businesses improve equipment performance, reduce operating costs, and extend the life of critical process machinery.
Manufactured using premium Fiberglass Reinforced Plastic (FRP), the Model T-240 offers outstanding resistance to corrosion, UV exposure, moisture, and harsh environmental conditions. Unlike conventional steel cooling towers, its fiberglass construction minimizes maintenance requirements while providing exceptional durability and long-term reliability. This makes the Model T-240 an excellent investment for facilities seeking a low-maintenance and cost-effective cooling solution.
Equipped with a powerful 1.5 HP, 3-phase fan motor and engineered to deliver approximately 9,800 CFM of airflow, the Model T-240 maximizes cooling efficiency while maintaining stable operating performance. Its precision-engineered water distribution system ensures uniform water flow across the fill media, increasing heat transfer efficiency and supporting consistent cooling under demanding operating conditions.
The 40 Ton Cooling Tower Model T-240 is ideal for manufacturing plants, HVAC systems, plastics processing, food and beverage facilities, metal fabrication, chemical processing, power generation, machine shops, and other industrial cooling applications. Every cooling tower is shipped completely assembled and packaged, reducing installation time and allowing for faster commissioning. Complete engineering documentation, CAD drawings, operating manuals, and technical specifications are also available to simplify installation and ongoing maintenance.
Whether you are replacing an existing cooling tower or designing a new industrial cooling system, the Model T-240 Cooling Tower delivers dependable performance, excellent energy efficiency, and long service life. Backed by the quality and expertise of Cooling Tower Systems, the Model T-240 provides a trusted cooling solution for facilities that demand reliable operation and maximum value.
Key Features & Benefits
- 40 Ton Cooling Capacity
- 600,000 BTU/hr Heat Rejection
- 9,800 CFM Airflow
- Heavy-Duty FRP Construction
- Corrosion Resistant
- Ships Fully Assembled
- Low Maintenance
- Commercial & Industrial Applications
- Long Service Life
- Energy Efficient Design
Technical Specifications
40 Nominal Tons based on design of 95/85/75 @ 118 GPM
| Specification | Value |
|---|---|
| Fan Motor | 1.5 HP, 208-230/460V, 3PH, 60Hz |
| Cooling Capacity | 600,000 BTU/hr |
| Air Volume | 9,800 CFM |
| Water Inlet | 2.5″ |
| Water Outlet | 2.5″ |
| Tower Diameter | 71 5/8″ |
| Tower Height | 74.5″ |
| Operating Weight | 1,254 lbs. |
| Dry Weight | 308 lbs. |
| Nozzle Type | Round Female (NPT) Threaded Nylon |
Shipping Information
| Shipping Details | Value |
|---|---|
| Shipping Weight | 540 lbs. |
| Shipping Dimensions | 74″ × 74″ × 88″ |
| Packaging | Ships Completely Assembled & Packaged |
The Model T-240 Cooling Tower is carefully packaged and shipped fully assembled to help reduce installation time and minimize labor costs. Every unit is securely prepared for transportation to help ensure it arrives in excellent condition and is ready for installation upon delivery.
Typical Applications
- Manufacturing Plants
- HVAC Systems
- Food Processing
- Plastic Processing
- Chemical Plants
- Power Generation
- Metal Fabrication
- Machine Shops
Frequently Asked Questions
What is the cooling capacity of the Model T-240 Cooling Tower?
The Model T-240 Cooling Tower provides a nominal cooling capacity of 40 tons and approximately 600,000 BTU/hr, based on a design condition of 95°F / 85°F / 75°F at 118 GPM. It is designed to deliver reliable heat rejection for commercial and industrial cooling applications.
What industries is the Model T-240 Cooling Tower suitable for?
The Model T-240 is commonly used in HVAC systems, manufacturing plants, plastics processing, food and beverage facilities, chemical processing, machine shops, metal fabrication, power generation, and other industrial applications requiring dependable process cooling and efficient heat removal.
What material is the Model T-240 Cooling Tower made from?
The Model T-240 is constructed from high-quality Fiberglass Reinforced Plastic (FRP), providing excellent resistance to corrosion, moisture, UV exposure, and harsh outdoor environments. Its durable fiberglass construction helps reduce maintenance while extending the cooling tower’s service life.
Does the Model T-240 Cooling Tower ship fully assembled?
Yes. Every Model T-240 Cooling Tower ships completely assembled and packaged, helping reduce installation time and labor costs. Engineering drawings, CAD files, operating manuals, and assembly instructions are also available to simplify installation and maintenance.
How can I request pricing or a quote for the Model T-240 Cooling Tower?
You can request a quote directly from Cooling Tower Systems by contacting our sales team through the website. Our specialists can help you select the right cooling tower based on your cooling capacity, application requirements, and system specifications.
Need Help Choosing the Right Cooling Tower?
Contact Cooling Tower Systems today for expert product recommendations and pricing.
