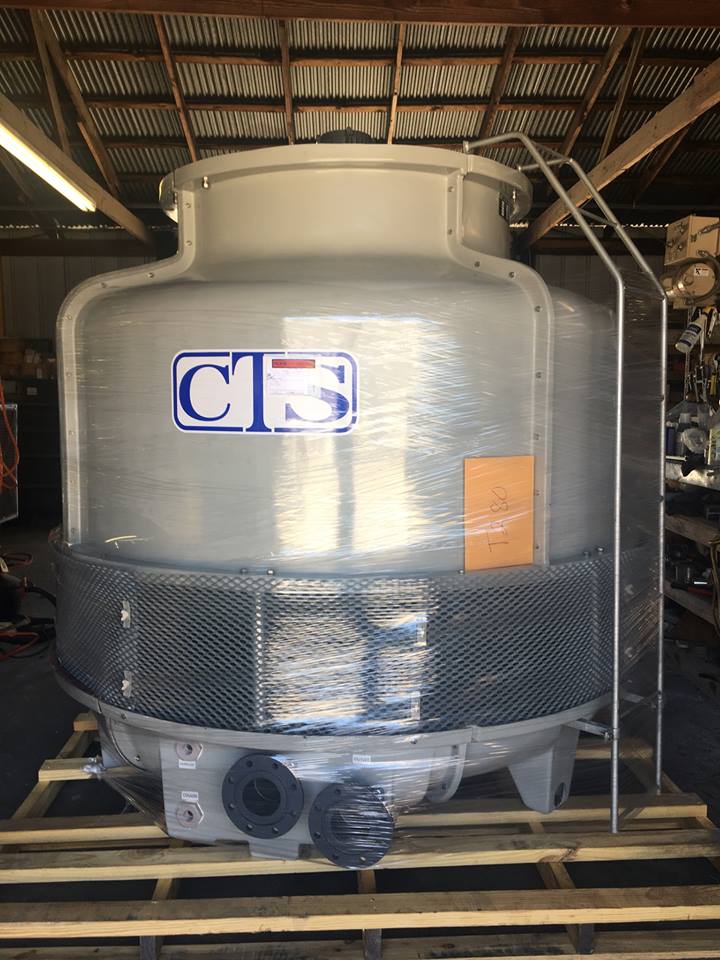

70 Ton Cooling Tower – Model T-270
The Model T-270 70 Ton Cooling Tower from Cooling Tower Systems is a high-capacity FRP evaporative cooling tower engineered for dependable commercial and industrial process cooling. Rated at 70 nominal tons based on a 95°F / 85°F / 75°F design at 207 GPM, it delivers approximately 1,050,000 BTU/hr of heat rejection with 17,500 CFM of airflow. Manufactured from corrosion-resistant fiberglass, the Model T-270 offers outstanding durability, energy-efficient performance, and low maintenance. Every unit ships completely assembled and includes complete engineering documentation for fast installation and long-term reliable operation.
Key Features & Benefits
- 70 Ton Cooling Capacity
- 1,050,000 BTU/hr Heat Rejection
- 17,500 CFM Airflow
- Heavy-Duty FRP Construction
- Corrosion Resistant
- Ships Fully Assembled
- Low Maintenance
- Commercial & Industrial Applications
- Long Service Life
- Energy Efficient Design
Technical Specifications
70 Nominal Tons based on design of 95°F / 85°F / 75°F @ 207 GPM
| Specification | Value |
|---|---|
| Fan Motor | 1.5 HP, 8P, 208-230/460V, 3PH, 60Hz *Electrical hookups are inside the junction box located on fan motor |
| Cooling Capacity | 1,050,000 BTU/hr |
| Air Volume | 17,500 CFM |
| Water Inlet | 4″ |
| Water Outlet | 4″ |
| Tower Diameter | 85 5/8″ |
| Tower Height | 79 3/8″ |
| Operating Weight | 2,268 lbs. |
| Dry Weight | 610 lbs. |
| Flange Type | Round, 150# Cast Iron |
Typical Applications
- Industrial Process Cooling
- Manufacturing Plants
- Large HVAC Systems
- Food & Beverage Processing
- Chemical Processing Facilities
- Metal Fabrication Plants
- Plastic Injection Molding
- Power Generation Support Systems
