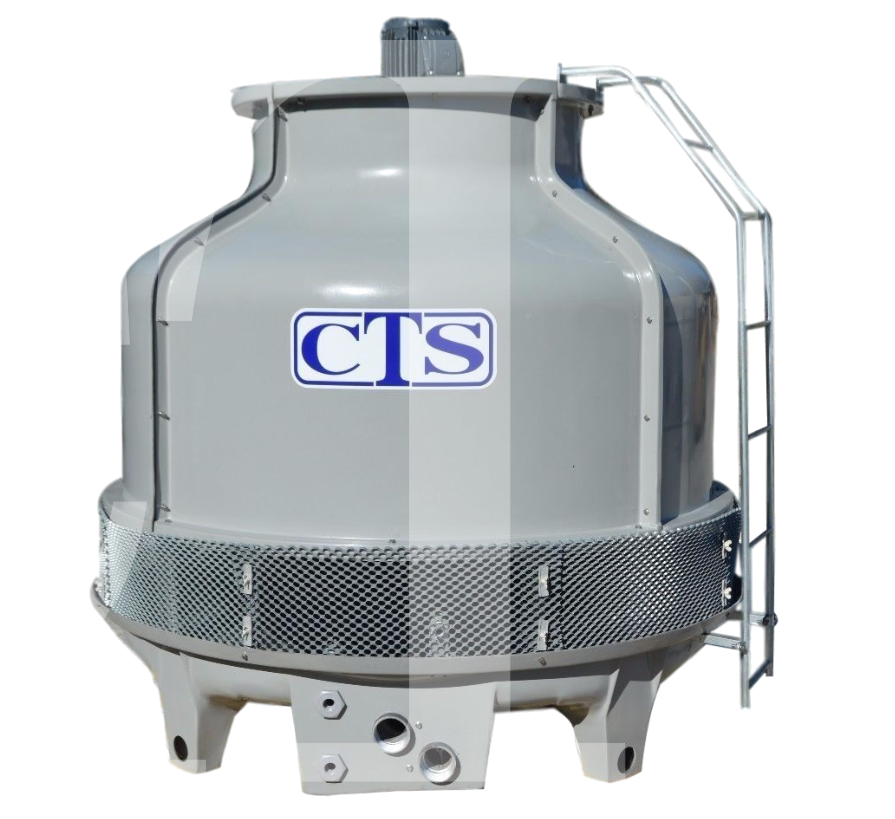

Model T-2500

Product Description
$0.00
Model T-2500
500 Nominal Tons based on design of 95/85/75 @ 1,505 GPM
Fan Motor 15 HP, 220/440V, 3PH, 60Hz
(Also available in 208/230/460V, 3PH)
*Electrical hookups are inside the junction box located on fan motor
V-Belt Speed Reducer LBM-110
Cooling Capacity 7,500,000 BTU/hr
Air Volume 91,030 CFM
Water Inlet 10"
Water Outlet 10"
Tower Diameter 219 5/8"
Tower Height
154 11/16"
Operating Weight 18,027 lbs.
Dry Weight 5,352 lbs.
Flange Type Round, 150# Cast Iron


Please note:
This price includes all associated freight charges and complete field assembly by CTS factory personnel in the continental United States.  If you would like a formal quote, please contact our sales office.
