Model T-3250

Product Description
$135,132.00

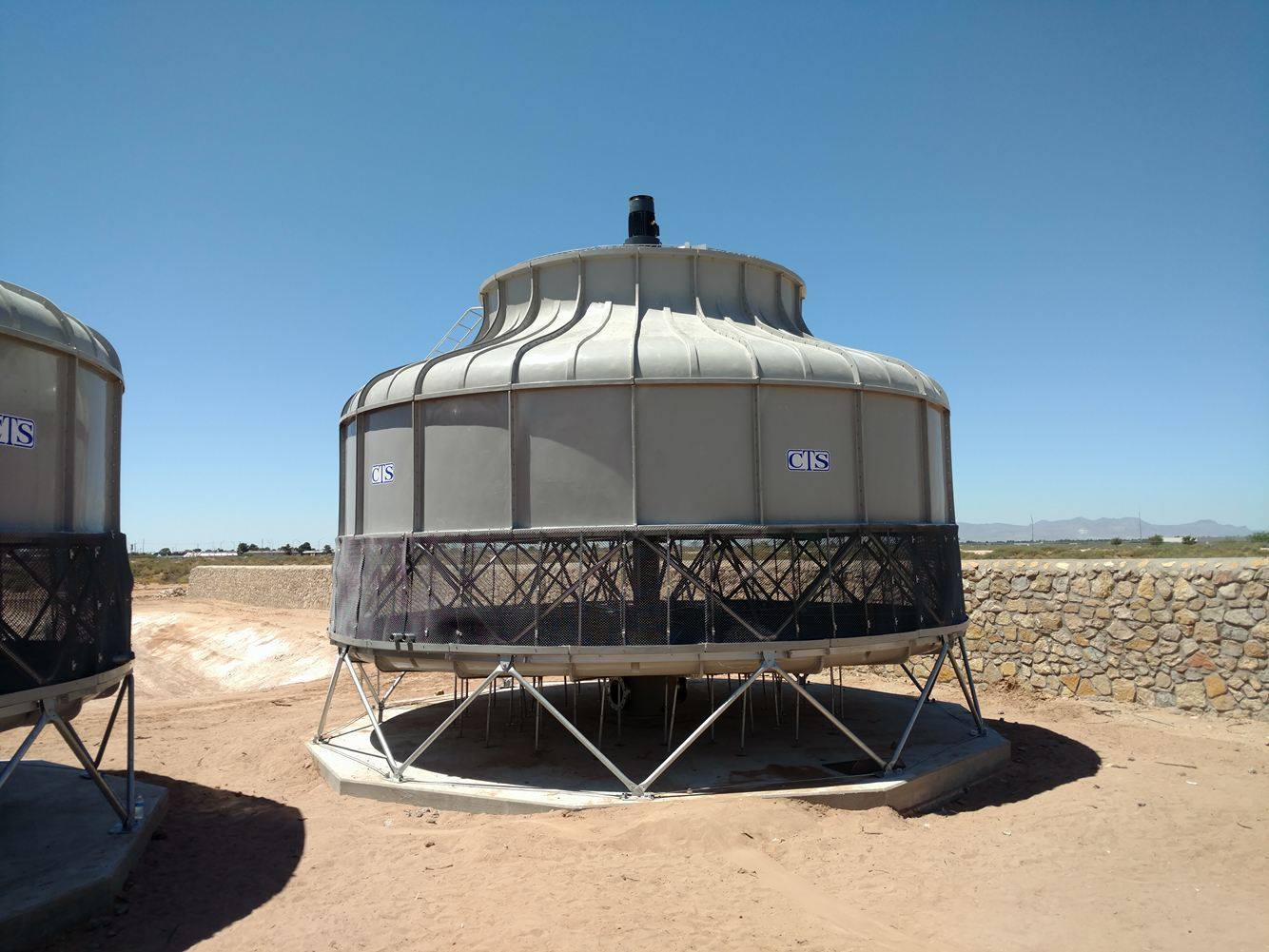

Model T-3250
1,250 Nominal Tons based on design of 95/85/75 @ 3,761 GPM
Fan Motor 40 HP, 220/440V, 3PH, 60Hz
(Also available in 208/230/460V, 3PH)
*Electrical hookups are inside the junction box located on fan motor
V-Belt Speed Reducer LBM-300
Cooling Capacity 18,750,000 BTU/hr

Flange Type

 Round, 150# Cast Iron

Operating Weight

 56,806 lbs.

Dry Weight

 14,449 lbs.


Please note: This price includes all associated freight charges and complete field assembly by CTS factory personnel in the continental United States.  If you would like a formal quote, please contact our sales office.
