Model CCT - 5 Ton Tower

Product Description
$2,073.00 $2,303.00

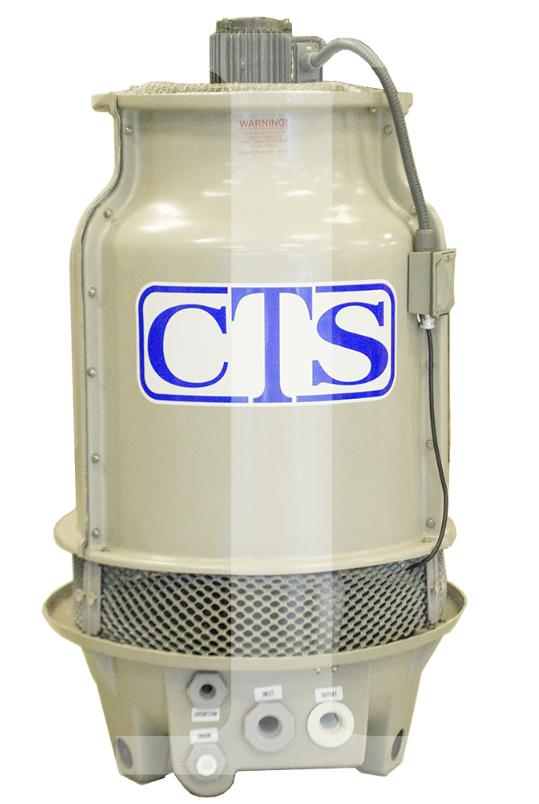

Model CCT
5 Nominal Tons based on design of 95/85/75 @ 15 GPM

  • Equipped with a dual on/off switch - one for the motor and one for the sump pump
  • Wired and tested to low voltage, single phase electricity
  • Common uses include small process cooling, machinery cooling, and pond cooling applications.
Fan Motor: 1/6HP, 110V/220V/1PH/60Hz
*Electrical hookups are inside the junction box located on fan motor

CCT-237 Sump Pump: 1/3HP, 115V/230V/1PH/60Hz (16' TDH @ 15 GPM)
CCT-457 Sump Pump: 1/2HP, 115V/230V/1PH/60Hz (29' TDH @ 15 GPM)
Cooling Capacity: 75,000 BTU Heat Rejection
Air Volume: 2,100 CFM
Water Inlet: 1 1/2"
Water Outlet: 1 1/2"
Tower Diameter: 33 1/2"
Tower Height: 52”
Dry Weight: 86 lbs.
Operating Weight: 251 lbs.


Shipping Weight: 150 lbs.
Shipping Dimensions: 36x36x63

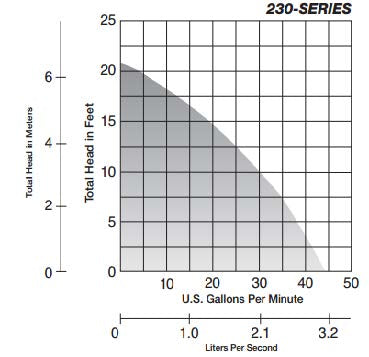

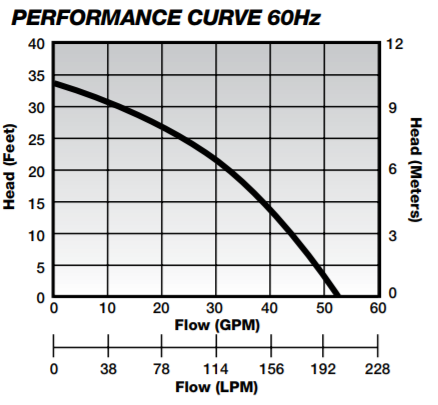

DISCLAIMER: Before considering the purchase of our model CCT cooling tower, please be aware the sump pump does have limitations. Please verify that the cooling tower will work for your application using the pump head and flow rates on the performance charts provided in the images and specification sheets. If you have any questions regarding the performance of this cooling tower, please call us at 800-752-1905.
