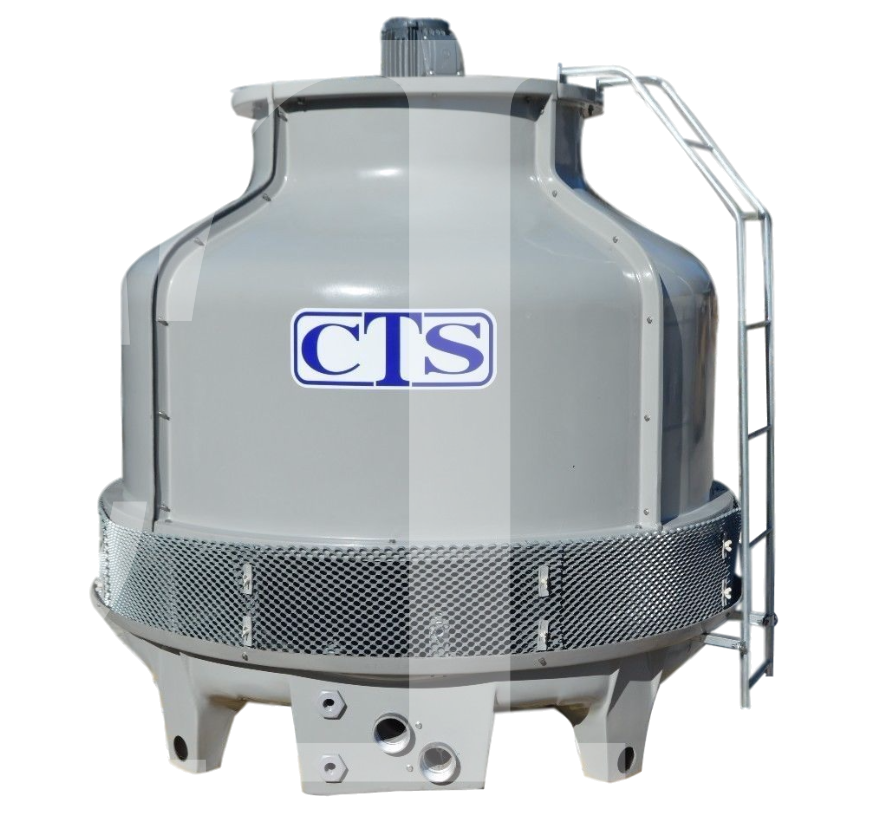

Model T-250

Product Description
$5,385.00 $5,983.00
Model T-250
50 Nominal Tons based on design of 95/85/75 @ 148 GPM

Fan Motor 1.5 HP, 6P, 220/440V, 3PH, 60Hz
(Also available in 208/230/460V, 3PH)
Cooling Capacity 600,000 BTU/hr
Air Volume 11,500 CFM
Water Inlet 3"
Water Outlet 3"
Tower Diameter 78.75"
Tower Height
74.5"
Operating Weight 1,313 lbs.
Dry Weight 435 lbs.
Flange Type Round, NPT Threaded, Cast Iron

Please note: If you would like to schedule your own shipping, the weight and dimensions are listed below.  Please contact the sales office for a waiver code to complete your sale.  We will need a copy of the bill of lading before it is scheduled for pick up.

Shipping Weight: 490 lbs.
Shipping Dimensions: 81 x 81 x 94

Engineering Information
