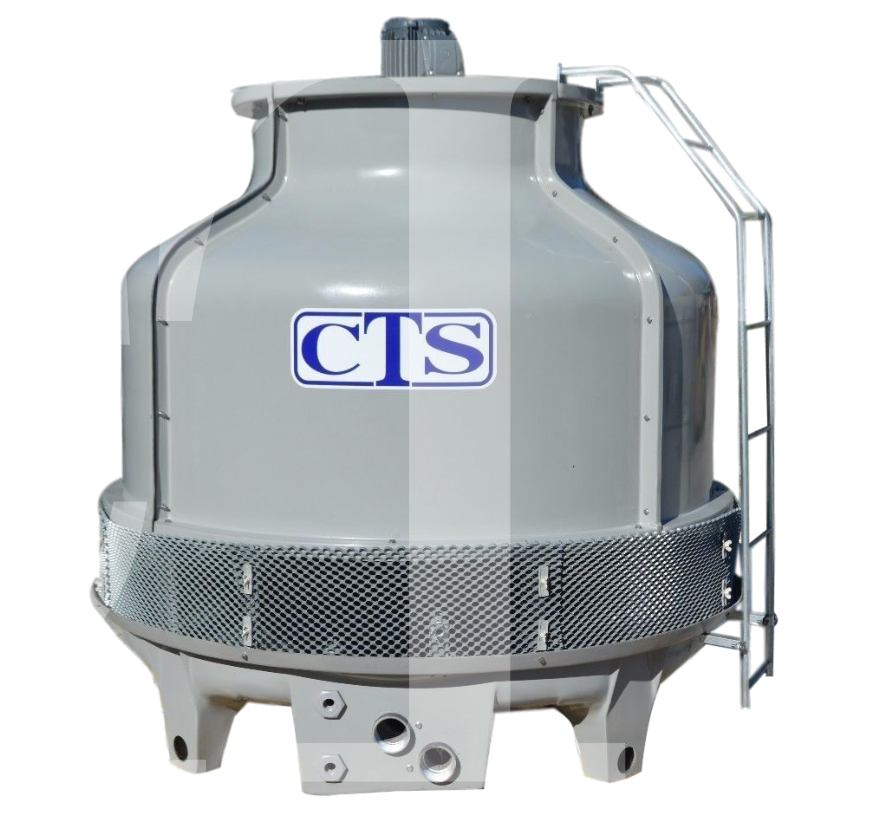

Model T-2225

Name: Model T-2225
Brand: cts-main
SKU: T-2225-N
Price: 27503.00 USD
Availability: InStock

$27,503.00

Engineering Information
Complete Specifications and Drawings for Model T-222 5

Model T-2225

225 Nominal Tons based on design of 95/85/75 @ 656 GPM

Fan Motor	7.5 HP, 208-230/460V, 3PH, 60Hz *Electrical hookups are inside the junction box located on fan motor
Speed Reducer	VBA-055B
Cooling Capacity	3,375,000 BTU/hr
Air Volume	61,270 CFM
Water Inlet	6"
Water Outlet	6"
Tower Diameter	148 3/8"
Tower Height	125 5/8"
Operating Weight	8,569 lbs.
Dry Weight	2,116 lbs.
Flange Type	Round, 150# Cast Iron

Please note: If you would like a formal quote, please contact our sales office.
